# AdGuard Exporter for Prometheus
A lightweight Prometheus exporter written in Go that exposes detailed metrics from your AdGuard Home instance — including DNS statistics, blocked domains, upstreams, and client data.
---
## Features
| Category | Capabilities |
|----------|--------------|
| API Integration | • Authenticated access to AdGuard Home API
• Supports `/control/status`, `/control/stats`, and `/control/querylog` endpoints |
| DNS Analytics | • Total DNS queries metrics
• Blocked DNS queries tracking
• Upstream DNS statistics
• Per-client query statistics
• Query reason statistics
• DNS upstream latency histograms |
| Query Log Processing | • Real-time query log analysis
• Query deduplication to prevent metric inflation
• Domain and query reason tracking |
| GeoIP Enrichment | • MaxMind GeoLite2 IP geolocation lookup
• DNS client geographic visualization (Grafana Geomap)
• DNS threat map for blocked queries
• GeoIP caching for improved performance |
| Traffic Analytics | • DNS queries grouped by ISP organization
• Country-level DNS traffic insights
• ISP-based DNS traffic monitoring |
| Exporter Monitoring | • Deduplication cache metrics
• GeoIP cache usage monitoring
• Deduplication hit counters
• Exporter scrape performance metrics |
| Deployment | • Customizable scrape interval
• Lightweight single binary deployment
• Docker-friendly deployment |
---
## Built With
- [Go (Golang)](https://golang.org/)
- [Prometheus Client Library](https://github.com/prometheus/client_golang)
- [AdGuard Home](https://github.com/AdguardTeam/AdGuardHome)
---
## Prerequisites
Before running this exporter, make sure:
- AdGuard Home is up and running
- You have a valid AdGuard username & password (without special character (!,@,`,* etc.))
- Prometheus is configured to scrape this exporter
- Docker installed (or alternatively Go 1.20+ for building from source)
- Port `9617` is available on your system
To make sure the endpoint is valid, you can check the endpoints via curl:
```
curl -v -u : :/control/stats
curl -v -u : :/control/status
curl -v -u : :/control/querylog
```
After that, you should got the output like this:
```
* Trying 172.31.20.12:80...
* Connected to 172.31.20.12 (172.31.20.12) port 80 (#0)
* Server auth using Basic with user 'admin'
> GET /control/stats HTTP/1.1
> Host: 172.31.20.12
> Authorization: Basic Xxxxxxxxxxxxxxxxxxxxxxxxx
> User-Agent: curl/7.88.1
> Accept: */*
>
< HTTP/1.1 200 OK
< Access-Control-Allow-Origin: http://172.31.20.12
< Content-Type: application/json
< Server: AdGuardHome/v0.107.62
< Vary: Origin
< Vary: Accept-Encoding
< Date: Tue, 08 Jul 2025 16:45:56 GMT
< Transfer-Encoding: chunked
<
```
---
---
## Environment Variables
| Variable | Description | Required | Example |
|------------------|---------------------------- | -------------------|-------------------
| `ADGUARD_HOST`| AdGuard Home base URL | ✅ | `http://192.168.1.1:3000,` |
| `ADGUARD_USER`| AdGuard Home username | ✅ | `admin` |
| `ADGUARD_PASS`| AdGuard Home password | ✅ | `secretpassword` |
| `EXPORTER_PORT` | Port to expose metrics (default: 9617) | ❌ | `9200` |
| `SCRAPE_INTERVAL` | How often to scrape (default: 15s) | ❌ | `30s` |
| `LOG_LEVEL` | Log Level to analyze, INFO, WARN, DEBUG | ❌ | `DEBUG`,`WARN`,`INFO` |
---
### Quick Start
## Run via Docker Compose
### 1. Create docker-compose.yml in your root dir
```yaml
version: '3.8'
services:
adguard-exporter:
image: ghcr.io/znandev/adguardexporter:latest
container_name: adguard_exporter
restart: unless-stopped
ports:
- "9617:9617"
volumes:
- .//GeoLite2-City.mmdb:/GeoLite2-City.mmdb
environment:
- ADGUARD_HOST=
- ADGUARD_USER=
- ADGUARD_PASS=
- EXPORTER_PORT=9617
- SCRAPE_INTERVAL=15s
- LOG_LEVEL=DEBUG
```
### 2. Run with Docker Compose
```bash
docker-compose up -d
```
---
## Metrics Endpoint
Once running, your exporter will be available at:
```
http://:9617/metrics
```
Ready to scrape by Prometheus!
---
## Example Prometheus Job
```yaml
- job_name: 'adguard-exporter'
scrape_interval: 15s
static_configs:
- targets: ['adguard-exporter:9617']
```
---
## Available Prometheus Metrics
This exporter exposes the following metrics from AdGuard Home.
---
### Core Metrics
* `adguard_dns_queries_total`
Total DNS queries processed by AdGuard Home.
* `adguard_blocked_filtering_total`
Total DNS queries blocked by filtering rules.
* `adguard_replaced_parental`
Queries replaced by parental filtering.
* `adguard_avg_processing_time`
Average DNS query processing time in milliseconds.
---
### AdGuard Status
* `adguard_protection_enabled`
Whether DNS filtering protection is enabled (1 = enabled, 0 = disabled).
* `adguard_running`
Whether the AdGuard Home DNS service is running.
* `adguard_dhcp_available`
Indicates if DHCP functionality is available.
* `adguard_protection_disabled_duration_seconds`
Time since DNS protection was disabled.
---
### Top Queries
Metrics with labels:
* `adguard_top_queried_domain_total{domain="example.com"}`
* `adguard_top_blocked_domain_total{domain="ads.example.com"}`
* `adguard_top_client_total{client="192.168.1.2"}`
* `adguard_top_upstream_total{upstream="8.8.8.8"}`
* `adguard_upstream_avg_response_time_seconds{upstream="8.8.8.8"}`
---
### Query Log Metrics
Metrics generated from AdGuard query log analysis.
* `adguard_query_domain_total{domain="example.com"}`
* `adguard_query_reason_total{reason="FilteredBlackList"}`
* `adguard_query_type_total{type="A"}`
* `adguard_query_upstream_total{upstream="8.8.8.8"}`
* `adguard_query_client_reason_total{client="192.168.1.10",reason="FilteredBlackList"}`
---
### Upstream Latency Metrics
Histogram metrics that track DNS upstream response time distribution.
* `adguard_upstream_latency_seconds`
This metric allows latency percentile calculations such as **p95 or p99 upstream DNS latency**.
Generated metrics:
* `adguard_upstream_latency_seconds_bucket`
* `adguard_upstream_latency_seconds_sum`
* `adguard_upstream_latency_seconds_count`
Example:
```
adguard_upstream_latency_seconds_bucket{upstream="1.1.1.1",le="0.005"} 50
```
---
### GeoIP Metrics
#### `adguard_client_geo_queries`
Total DNS queries per client enriched with geographic information.
Labels:
* `client` – Client IP address
* `country` – ISO country code
* `lat` – Latitude
* `lon` – Longitude
Example:
```
adguard_client_geo_queries{client="118.99.94.204",country="ID",lat="-2.969000",lon="104.744200"} 1000
```
---
#### `adguard_blocked_geo_queries`
Counts DNS queries that were blocked by filtering rules and enriches them with geographic information.
Labels:
* `client`
* `country`
* `lat`
* `lon`
Example:
```
adguard_blocked_geo_queries{client="118.99.94.204",country="ID",lat="-2.969000",lon="104.744200"} 306
```
---
### Exporter Health Metrics
Metrics used to monitor the exporter itself.
* `adguard_exporter_up` — Indicates if the exporter successfully scraped the AdGuard API.
* `adguard_exporter_scrape_duration_seconds` — Time taken for the exporter to scrape AdGuard API data.
* `adguard_exporter_scrape_errors_total` — Total number of errors encountered during scraping.
* `adguard_exporter_query_cache_size` — Number of cached DNS query entries used for deduplication.
* `adguard_exporter_geo_cache_size` — Number of cached GeoIP lookup entries.
* `adguard_exporter_dedup_hits_total` — Total number of duplicate DNS queries skipped by the exporter.
---
## License
This project is licensed under the MIT License — see the [LICENSE](LICENSE) file for details.
---
## Screenshots

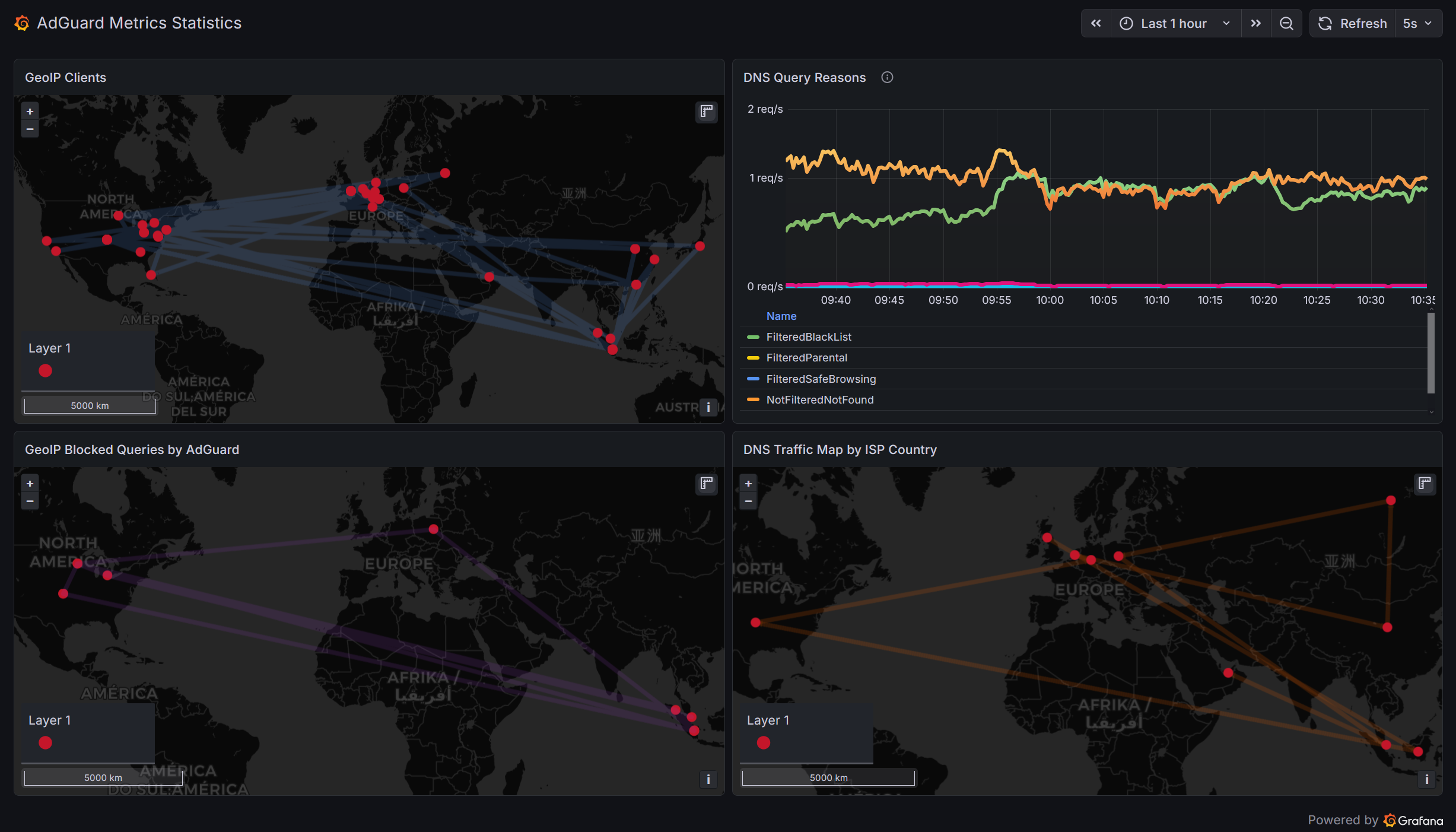

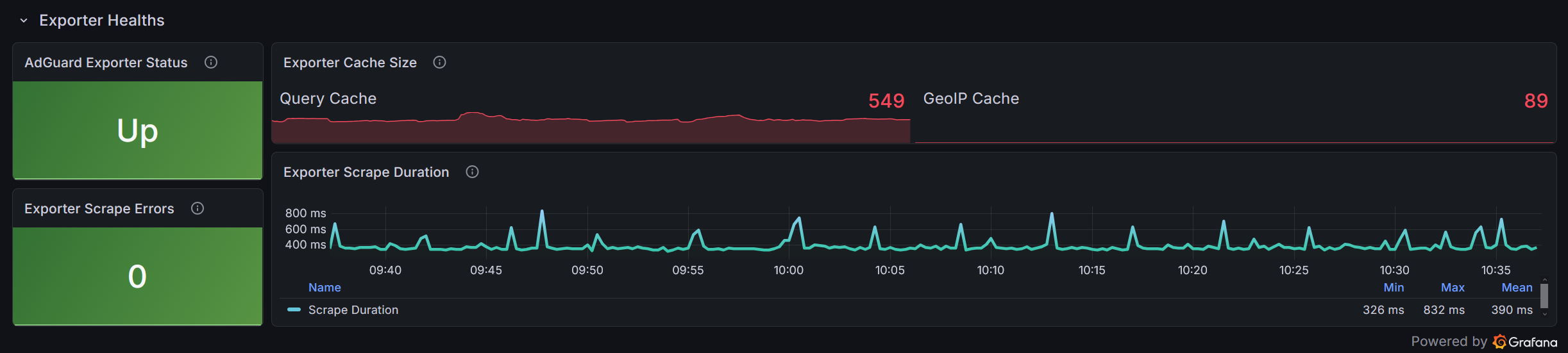

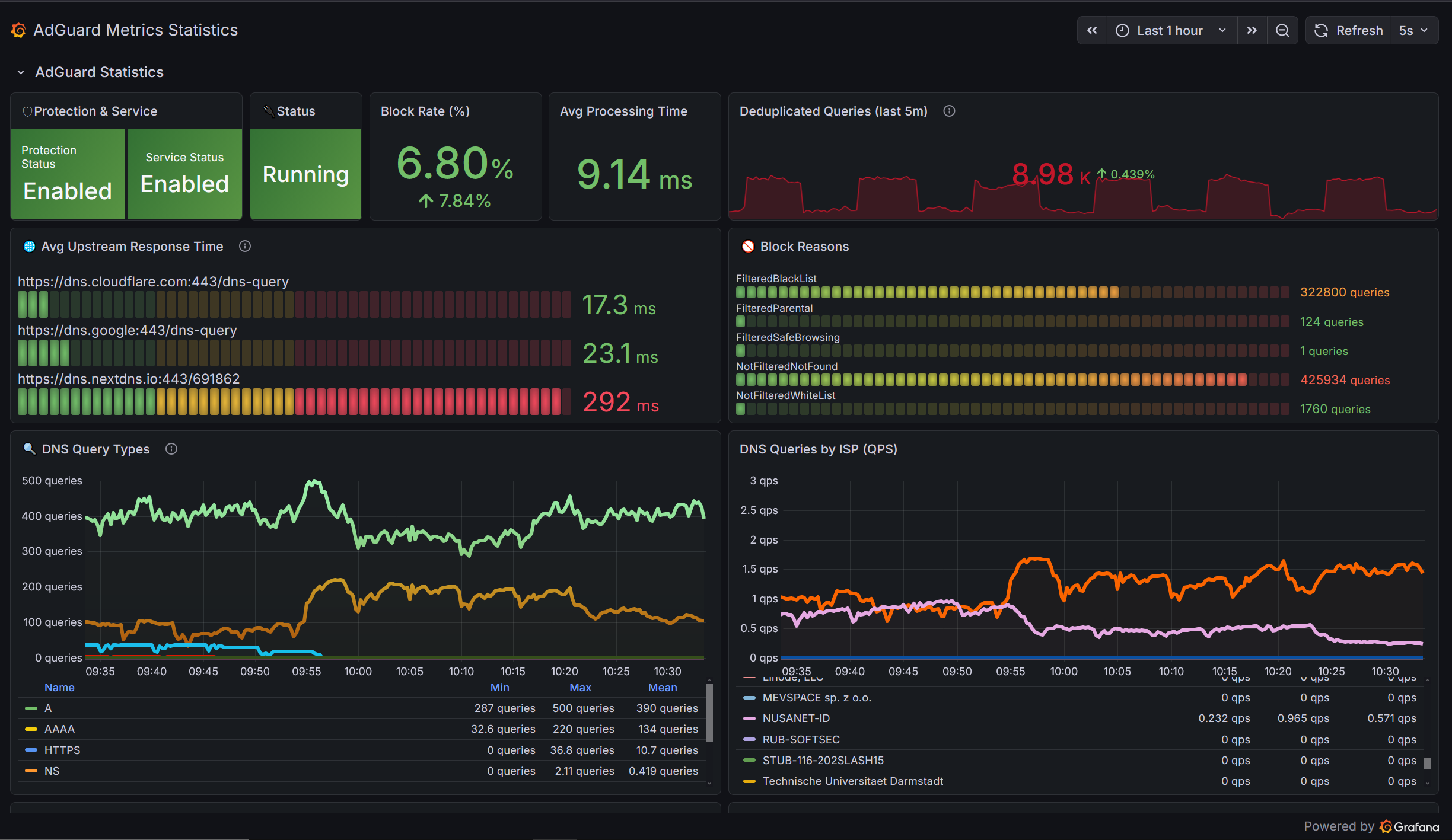

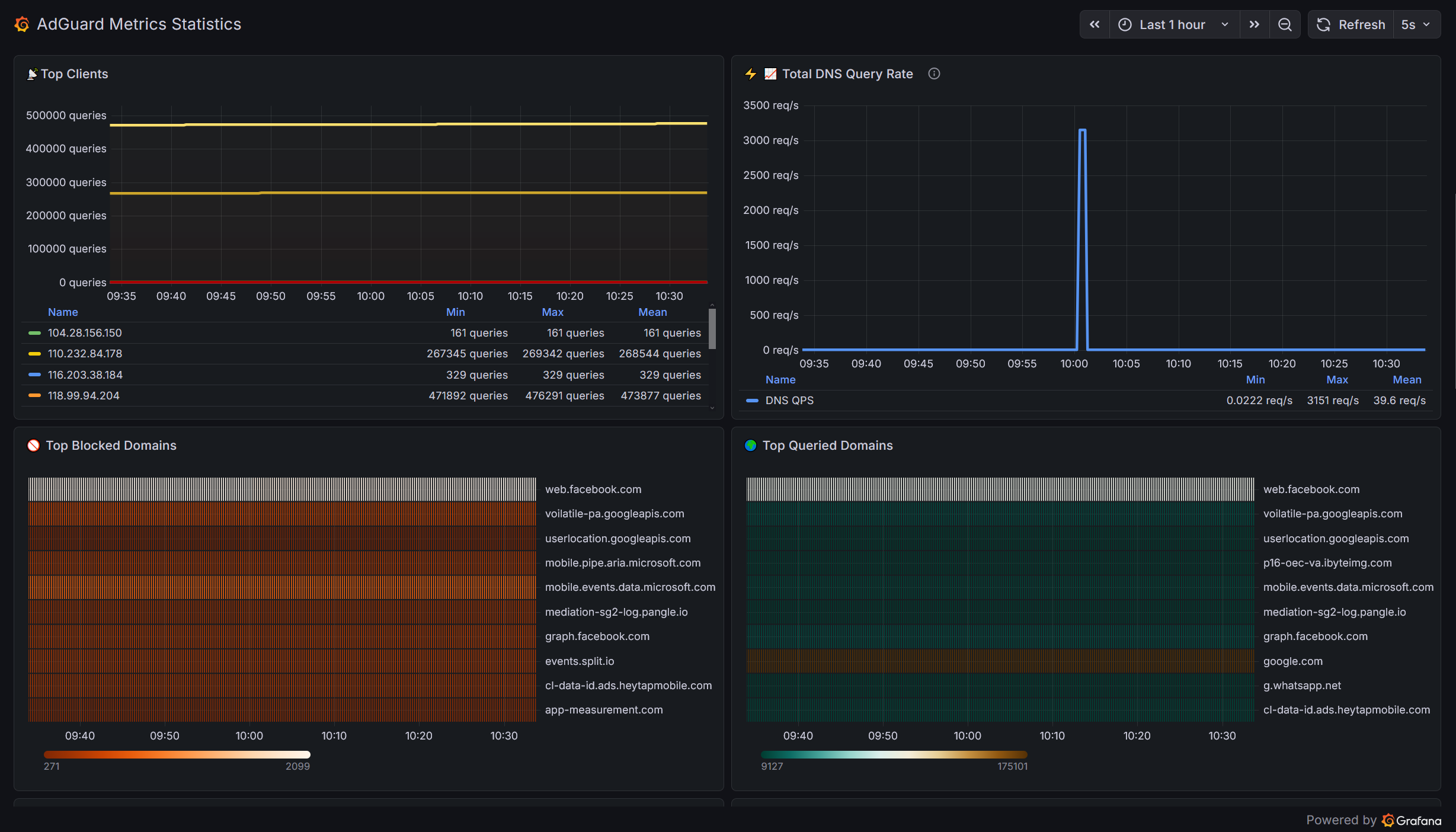

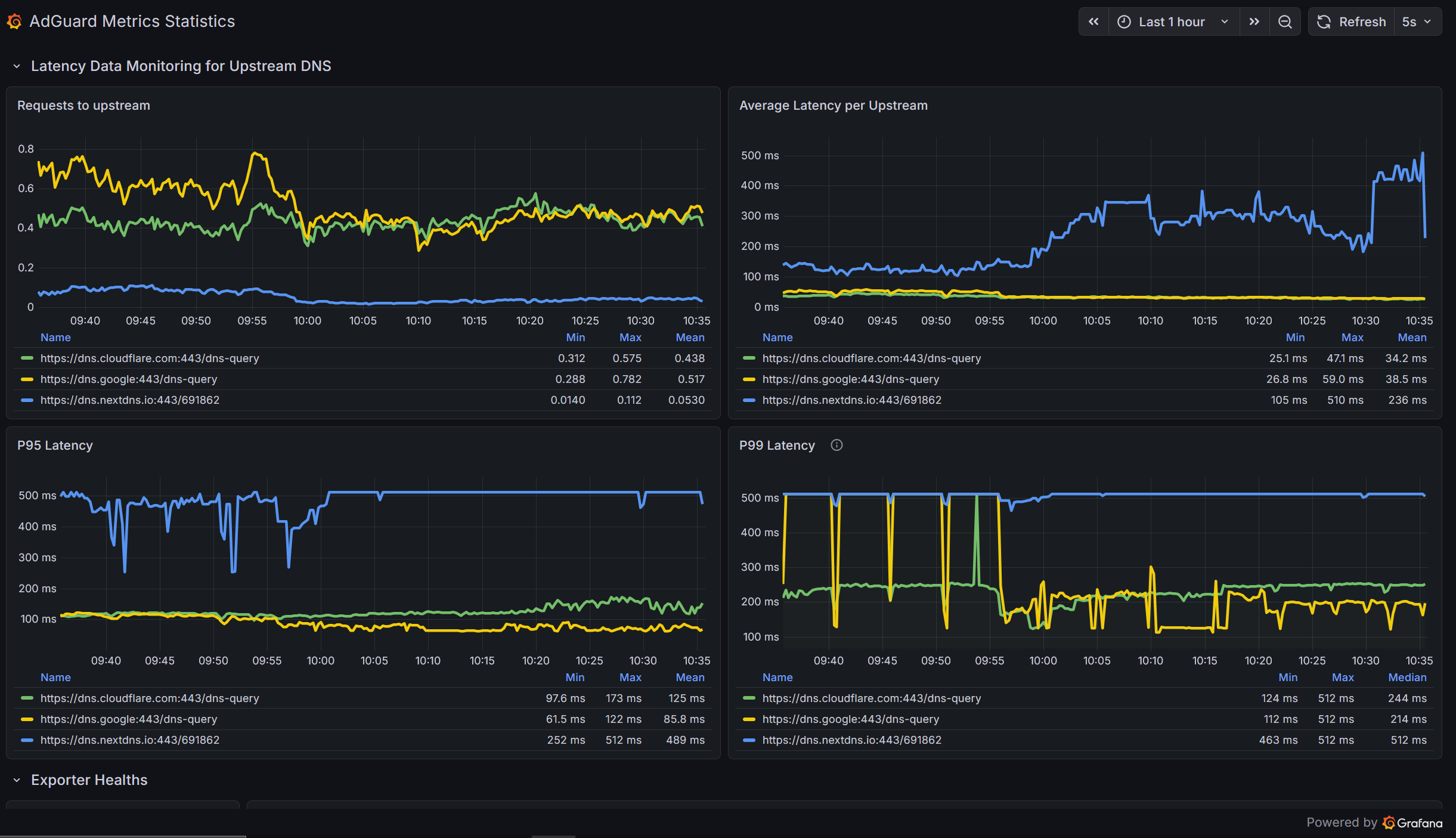

Grafana Dashboard Preview
[Live preview and monitoring, click here](https://stats.znand.my.id/public-dashboards/a0b05deb37464a17b01cbc69eb65ac5a?orgId=1&refresh=5s)
[Deploy yours here](https://grafana.com/grafana/dashboards/23579-adguard-metrics-statistics/)
— new dashboard.json for grafana will be uploaded soon
---
## 💬 Feedback
Pull Requests, Issues, and Suggestions are always welcome!
**Made with ❤️ by [znanddev](https://github.com/znand-dev)**
